Scheme A

This scheme is used to prevent two Mains or a Generator and a Main or two Generators from being tied together through their own associated switch or breaker. This scheme prevents two switches or breakers from being closed simultaneously.

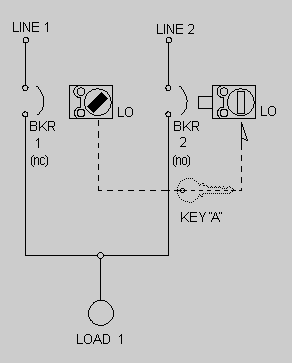

Initial Conditions: The load is fed from line #1 through breaker #1 which is normally closed with its respective interlock key "A" captive. Breaker #2 is locked open with no interlock key present.

Switching the load to line 2 through breaker 2: Open breaker #1 and lock thereby releasing the "A" key. Use the "A" key to unlock and close breaker #2. Reverse to restore the initial condition.

Procedure:

1. Open switch or breaker #1
2. Lock open by extending locking bolt - this releases key "A"
3. Insert key "A" into lock on breaker #2
4. Unlock and retract locking bolt - this allows breaker #2 to be closed
5. Reverse above procedure to restore to original condition
